Miniature insert pillow block bearing with KFL housing KFL08

product information:

Structure:pillow block bearing

Type:pillow block bearing

Brand Name:YWS

Weight: 108g

Overall Size: 46 x 26 x 11mm/1.8" x 1.1" x 0.4"(L*W*H)

Bearing Inner Dia.: 8mm/0.3"

Mounting Hole Diameter: 5mm/0.2"

Mounting Hole Distance: 37mm/1.46"

Housing Meterial: Zinc Alloy

Material:Chrome steel/GCr15/Stainless steel/ceramic

Sealing type: You can choose Metal seal Or Rubber seal

Is customized: Yes (Drawings required)

Wholesale and freight: To provide you with accurate solutions

Product description：

1.A pillow block contains a housing and an double sealed insert self-alignment bearing that avoid any misalignment.

2.Bearing housings are made of Zinc Alloy while bearings are made of Chromium Steel (GCr15), giving them low friction, vibration and noise.

3.Pillow block Bearings have two bolt holes for installation. It is easy to replace.

4.The set screws enable the shaft to be fixed to the inner ring of the bearing and preventing slippage. The size of inner hex wrench is recommended below.

Product features：

8mm Bore Diameter self-aligning, pillow block bearing, you can adjust or replace easily.

Having a wide inner ring with two set screws for attaching to the shaft.

Widely used in various of machinery, especially in food machine.

Also can be used into pharmaceutical machinery, conveyering systems, film processing machinery, spin machine, printing machinery,etc.

Zinc-aluminum alloy housing, chrome steel insert, easy to install.

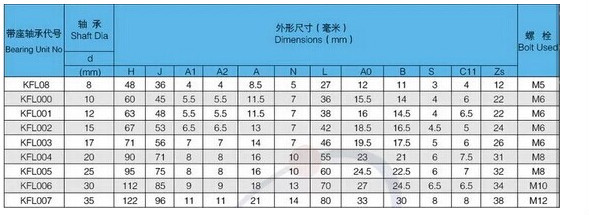

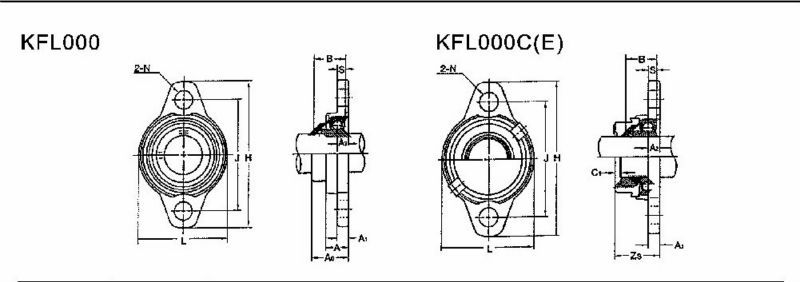

Specification  of Miniature insert pillow block bearing with KFL housing KFL08

Brand: YWS OEM Model:   Zinc Alloy Miniature Bearings KFL08 for CNC router Old Model:  Type: spherical ball bearings  Inside diameter: 8 (mm)  Weight:  (kg)  Cage material: F1 Carbon / Nylon/or other Use characteristics: high temperature  Uses: General  Rolling out a few: single  Roller type: Spherical roller  Sample or spot: spot  Bearing material: high carbon chromium bearing steel (full hardenability type) (GCr15)
