ball bearing
YWS OEM
40
68
16008
P6 abec3
ZZ 2rs open
single
china
chrome steel stainless steel hybrid ceramic
steel nylon
Availability: | |
---|---|
Product Details

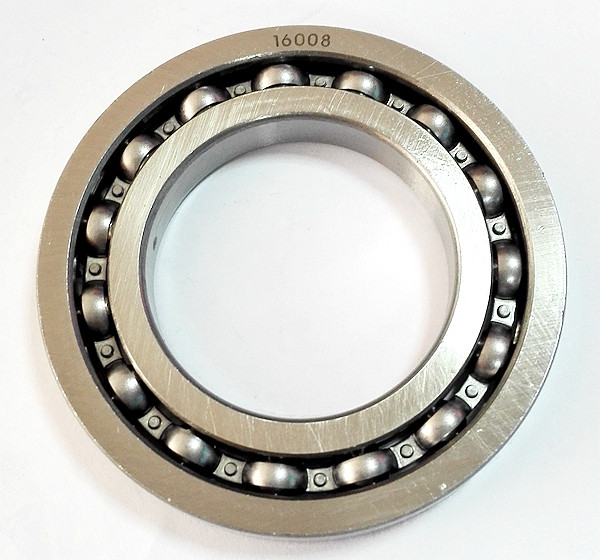

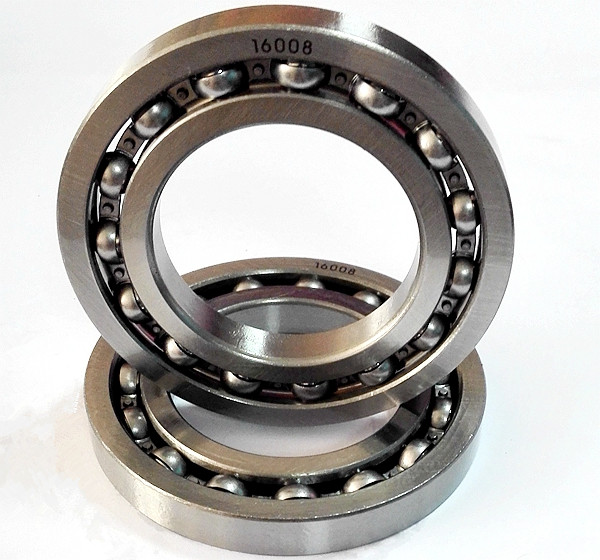

16008 deep groove ball bearing 40X68X9mm
Data Sheet
Internal diameter:40mm
External diameter:68mm
Width:9mm
Load Rating(Cr):11590 N
Load Rating(Cor):9130 N
Weight:0.125kg
The Application:the 16008 bearing is mainly used in concrete mixer, pneumatic mixer, mixing equipment, food emulsifying machine, electric mixer, submersible mixer, mixing equipment, medicine laboratory with mixing equipment, drying equipment, dehumidifier, and other equipment.etc.
The 16000 series deep groove ball bearing models and sizes:
Models | ID mm | OD mm | Width mm/open | Rsmin mm | Cr N | Cor N | Weight (kg) |
16100 | 10 | 28 | 8 | 0.3 | 5110 | 2380 | 0.022 |
16101 | 12 | 30 | 8 | 0.3 | 5110 | 2380 | 0.023 |
16001 | 12 | 28 | 7 | 0.3 | 4320 | 2250 | 0.024 |
16002 | 15 | 32 | 8 | 0.3 | 5590 | 2840 | 0.025 |
16003 | 17 | 35 | 8 | 0.3 | 6000 | 3250 | 0.032 |
16004 | 20 | 42 | 8 | 0.3 | 6340 | 3790 | 0.05 |
16005 | 25 | 47 | 8 | 0.3 | 6940 | 4600 | 0.06 |
16006 | 30 | 55 | 9 | 0.3 | 9950 | 6530 | 0.085 |
16007 | 35 | 62 | 9 | 0.3 | 10820 | 7830 | 0.11 |
16008 | 40 | 68 | 9 | 0.3 | 11590 | 9130 | 0.125 |
16009 | 45 | 75 | 10 | 0.6 | 11830 | 9880 | 0.17 |
16010 | 50 | 80 | 10 | 0.6 | 12510 | 11100 | 0.18 |
16011 | 55 | 90 | 11 | 0.6 | 19300 | 16300 | 0.26 |
16012 | 60 | 95 | 11 | 0.6 | 20000 | 17500 | 0.28 |
16013 | 65 | 100 | 11 | 0.6 | 21200 | 17800 | 0.3 |
