Product Details
6001 zz deep groove ball bearing 12X28X8mm
product information:
Structure:Deep Groove
Type:Ball, ball bearing
Brand Name:YWS
Internal diameter:12mm
External diameter:28mm
Width:8mm
size:12X28X8mm
Load Rating(Cor):2380 N
Load Rating(Cr):5110 N
Weight:0.022kg
Material:Chrome steel/GCr15/Stainless steel/ceramic
Sealing type: You can choose Metal seal Or Rubber seal
Is customized: Yes (Drawings required)
Related accessories: Oil seal,Circlip and housings etc.
Wholesale and freight: To provide you with accurate solutions
Product description:
Single row radial ball bearings are the most widely used bearings and utilize an uninterrupted raceway, which makes these bearings suitable for radial loads, or a combination of thrust and radial loads. This design permits precision tolerances even at high speed operation. Shielded bearings are protected on one, or both sides (suffixes Z and ZZ, respectively) by metal shields fastened to the outer ring. This close clearance labyrinth seal retains the lubricant and prevents the entrance of foreign matter. Sealed bearings incorporate steel reinforced rubber seals securely fastened to a groove on the outer ring. Contact with the inner ring is by sealing lip (Contact Suffix LLU). Or, non-contact with the inner ring is by labyrinth seal (Non-contact Suffix LLB) to provide positive sealing at all times.
Product features:
Deep groove geometry for high speeds
Single row for supporting radial loads
Steel cage evenly spaces balls for reduced friction, vibration and noise
Shields on both sides to keep lubricant in and contaminants out
CN (normal) radial internal clearance for applications that do not involve thermal expansion or atypical precision

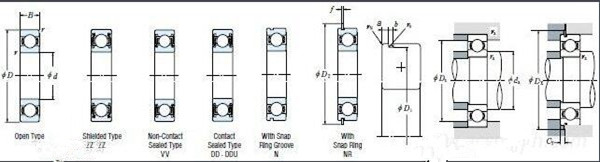

The 6001 bearing size drawing:
The Application:
The 6001 bearing is mainly used in environmental protection equipment, locator, and other accessories, ion fan, electric welding, cutting equipment, valve body, tapping machine, planetary reducer, crane scale, vehicle lights, such as equipment.
The 6000 series deep groove ball bearing models and sizes:
Models | ID mm | OD mm | Width mm | Rsmin mm | Cr N | Cor N | Weight (kg) |
603 | 3 | 9 | 3 | 0.2 | 486 | 223 | 0.0014 |
604 | 4 | 12 | 4 | 0.2 | 960 | 350 | 0.0023 |
605 | 5 | 14 | 5 | 0.2 | 1070 | 420 | 0.0037 |
606 | 6 | 17 | 6 | 0.3 | 1960 | 730 | 0.0069 |
607 | 7 | 19 | 6 | 0.3 | 2800 | 1060 | 0.0082 |
608 | 8 | 22 | 7 | 0.3 | 3290 | 1360 | 0.0129 |
609 | 9 | 24 | 7 | 0.3 | 3330 | 1410 | 0.016 |
6000 | 10 | 26 | 8 | 0.3 | 4160 | 1780 | 0.019 |
6001 | 12 | 28 | 8 | 0.3 | 5110 | 2380 | 0.022 |
6002 | 15 | 32 | 9 | 0.3 | 5590 | 2840 | 0.03 |
6003 | 17 | 35 | 10 | 0.3 | 6000 | 3250 | 0.039 |
6004 | 20 | 42 | 12 | 0.6 | 9390 | 5020 | 0.069 |
6005 | 25 | 47 | 12 | 0.6 | 10060 | 5860 | 0.08 |
6006 | 30 | 55 | 13 | 1 | 11900 | 7460 | 0.116 |
6007 | 35 | 62 | 14 | 1 | 16210 | 10420 | 0.155 |
6008 | 40 | 68 | 15 | 1 | 17030 | 11700 | 0.192 |
6009 | 45 | 75 | 16 | 1 | 21080 | 14780 | 0.245 |
6010 | 50 | 80 | 16 | 1 | 22000 | 16260 | 0.261 |
6011 | 55 | 90 | 18 | 1.1 | 31500 | 18400 | 0.384 |
6012 | 60 | 95 | 18 | 1.1 | 30000 | 23000 | 0.426 |
6013 | 65 | 100 | 18 | 1.1 | 32000 | 25000 | 0.428 |
6014 | 70 | 110 | 20 | 1.1 | 38000 | 31000 | 0.62 |
6015 | 75 | 115 | 20 | 1.1 | 38000 | 31000 | 0.63 |
6016 | 80 | 125 | 22 | 1.1 | 47500 | 40000 | 0.86 |
6017 | 85 | 130 | 22 | 1.1 | 47500 | 40000 | 0.935 |
6018 | 90 | 140 | 24 | 1.5 | 63800 | 59000 | 1.38 |
6019 | 95 | 145 | 24 | 1.5 | 66700 | 62300 | 1.5 |
6020 | 100 | 150 | 24 | 1.5 | 72500 | 70000 | 1.63 |
6022 | 110 | 170 | 28 | 2 | 80000 | 78900 | 2.35 |
6024 | 120 | 180 | 28 | 2 | 81000 | 81000 | 2.62 |
6026 | 130 | 200 | 33 | 2 | 96800 | 100000 | 3.55 |
6028 | 140 | 210 | 33 | 2 | 123700 | 130000 | 4.21 |
6030 | 150 | 225 | 35 | 2.1 | 132000 | 125000 | 4.9 |
6032 | 160 | 245 | 38 | 2.1 | 145000 | 138000 | 5.89 |
6034 | 170 | 260 | 42 | 2.1 | 170000 | 170000 | 6.5 |
6036 | 180 | 280 | 46 | 2.1 | 188000 | 198000 | 8.51 |
6038 | 190 | 290 | 46 | 2.1 | 188000 | 200000 | 8.86 |
6040 | 200 | 310 | 51 | 2.1 | 205000 | 225000 | 11.64 |
6044 | 220 | 340 | 56 | 3 | 252000 | 268000 | 18 |
6048 | 240 | 360 | 56 | 3 | 270000 | 292000 | 20 |
6052 | 260 | 400 | 65 | 4 | 292000 | 372000 | 28.2 |
6056 | 280 | 420 | 65 | 4 | 305000 | 408000 | 32.1 |
Sincerely welcome to send enquiry to us!!!
