Product Description
Ball Screw Support Unit EK10 FK10 Fixed side unit
Ball screw support unit is a bearing connected ball screw and motor ,its structure and specialty for standard ball spiral its axis of the inventory the finished product, preparation of the standardization of the support unit EK, EF type, to general ball spiral poles prepared the standard support unit BK, BF type.
Support unit EK, BK type of internal bearing load in the right amount of lithium base grease, with the special seal gasket to seal, can direct installation, use for a long time.
Ball Screw support units
Mini fixed-side round type ball screw bearing support unit EK05 EF05
Feature:
1. Rolled and ground
2. Super high presicion
3. Low noise
4. Low backlash
5. In large stock
6. Prompt delivery
We can supply a range size of the end support unit bearings suitable for ball screw and lead screw. Available in both flanged and pillow block versions that cater for shaft diameter from 4mm up to 40mm.
Application
Support Bearing is widely used in precision screw machine tools, electronics, automation, textile, automotive, medical, food, packaging, rubber and other fields. Products include, ball splines, linear combination of components such as bearings and related linear motion products.
High precision bearings
BK10 | BK12 | BK15 | BK17 | |
BK20 | BK25 | BK30 | BK35 | BK40 |
BF10 | BF12 | BF15 | BF17 | |
BF20 | BF25 | BF30 | BF35 | BF40 |
EK6 | EK8 | EK10 | EK12 | |
EK15 | EK20S | EK20 | EK25 | |
EF6 | EF8 | EF10 | EF12 | |
EF15 | EF20S | EF20 | EF25 | |
FK(WBK)6S | FK(WBK)8 | FK(WBK)10 | FK(WBK)12 | |
FK(WBK)15 | FK(WBK)20 | FK(WBK)25 | FK(WBK)30 | |
FF(WBF)6 | FF(WBF)10 | FF(WBF)12 | FF(WBF)15 | |
FF(WBF)20 | FF(WBF)25 | FF(WBF)30 |
BKU10 | BKU12 | BKU15 | BKU17 | BKU20 | BKU25 |
BFU10 | BFU12 | BFU15 | BFU17 | BFU20 | BFU25 |
EKU6 | EKU8 | EKU10 | EKU12 | ||
EKU15 | EKU20S | EKU20 | EKU25 | ||
EFU6 | EFU8 | EFU10 | EFU12 | ||
EFU15 | EFU20S | EFU20 | EFU25 |

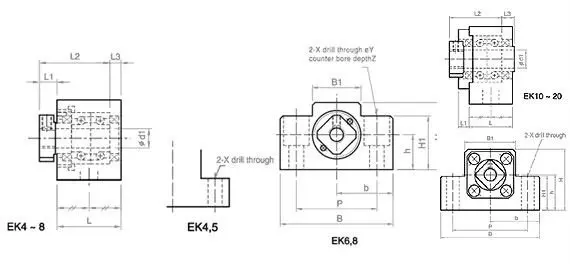

Model No. | d1 | L | L1 | L2 | L3 | B | H | d | h | B1 | H1 | P | X | Y | Z |
EK 4 | 4 | 15 | 5.5 | 17.5 | 3 | 34 | 19 | 17 | 10 | 18 | 7 | 26 | 4.5 | - | - |
EK 5 | 5 | 16.5 | 5.5 | 18.5 | 3.5 | 36 | 21 | 18 | 11 | 20 | 8 | 28 | 4.5 | - | - |
EK 6 | 6 | 20 | 5.5 | 22 | 3.5 | 42 | 25 | 21 | 13 | 18 | 20 | 30 | 5.5 | 9.5 | 11 |
EK 8 | 8 | 23 | 7 | 26 | 4 | 52 | 32 | 26 | 17 | 25 | 26 | 38 | 6.6 | 11 | 12 |
EK 10 | 10 | 24 | 6 | 29.5 | 6 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
EK 12 | 12 | 24 | 6 | 29.5 | 6 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
EK 15 | 15 | 25 | 6 | 36 | 5 | 80 | 49 | 40 | 30 | 41 | 25 | 60 | 11 | - | - |
EK 20 | 20 | 42 | 10 | 50 | 10 | 95 | 58 | 47.5 | 30 | 56 | 25 | 75 | 11 | - | - |

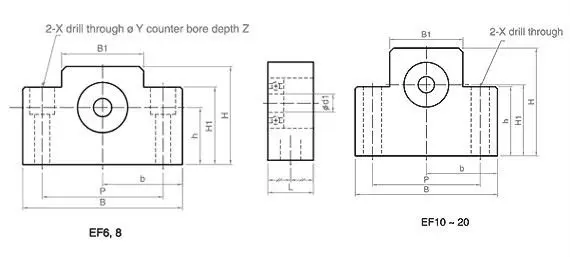

Model No. | d1 | L | B | H | d | h | B1 | H1 | P | X | Y | Z |
EF 6 | 6 | 12 | 42 | 25 | 21 | 13 | 18 | 20 | 30 | 5.5 | 9.5 | 11 |
EF 8 | 6 | 14 | 52 | 32 | 26 | 17 | 25 | 26 | 38 | 6.6 | 11 | 12 |
EF 10 | 8 | 20 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
EF 12 | 10 | 20 | 70 | 43 | 35 | 25 | 36 | 24 | 52 | 9 | - | - |
EF 15 | 15 | 20 | 80 | 49 | 40 | 30 | 41 | 25 | 60 | 9 | - | - |
EF 20 | 20 | 26 | 95 | 58 | 47.5 | 30 | 56 | 25 | 75 | 11 | - | - |
